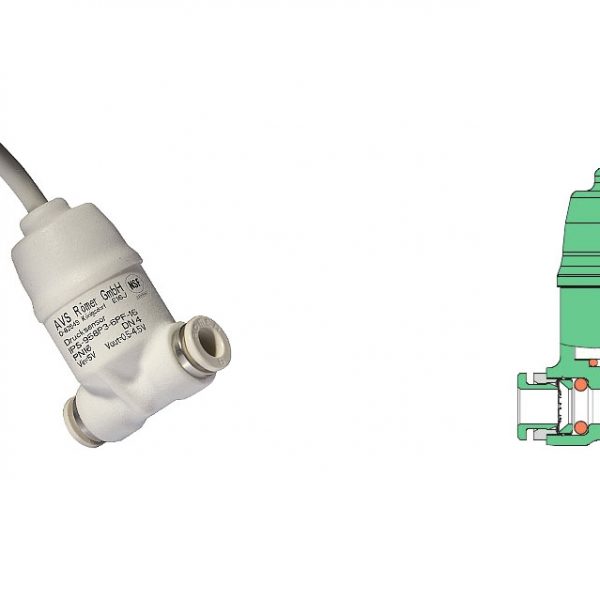

AVS-Pressure Sensor Type IPS Inline Pressure Sensor
CHARACTERISTICSPPSU body
- FKM or EPDM seal material, FDA compliant
- Ceramic pressure sensing cell
- ELSA push-in connections for plastic pipe/tube OD 4 and OD 6 mm
- Operating pressure up to PN 16 (depending on the temperature)
- Temperature of medium up to 140 °C
- Supply voltage 5 VDC
- Analog output signal from 0.5 to 4.5 VDC
- Temperature compensated evaluation electronic
- Measuring range 0 – 4 bar and 0 – 16 bar
- FDA compliant
- NSF certified
